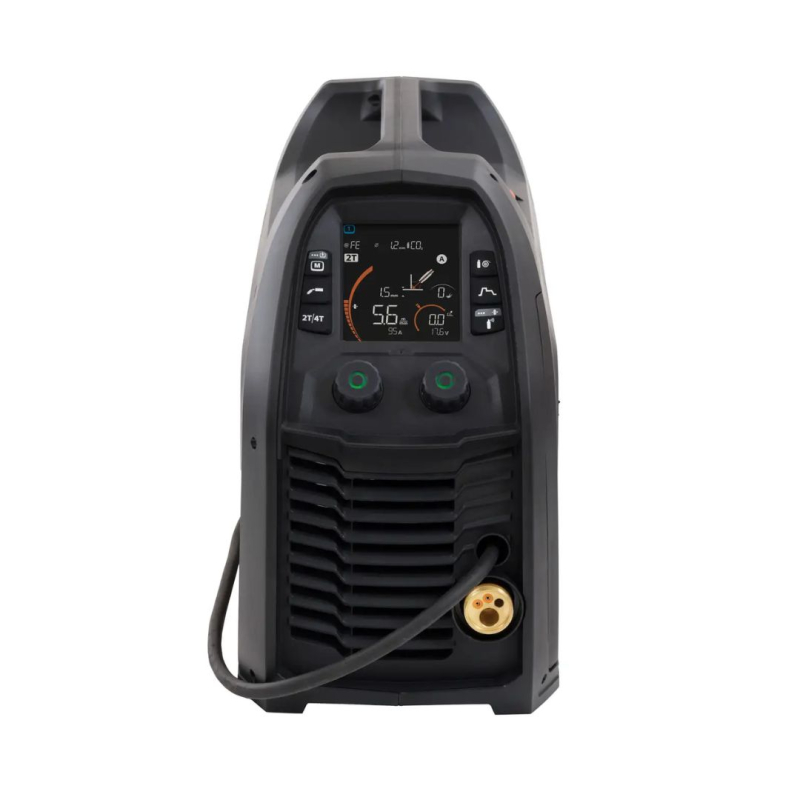

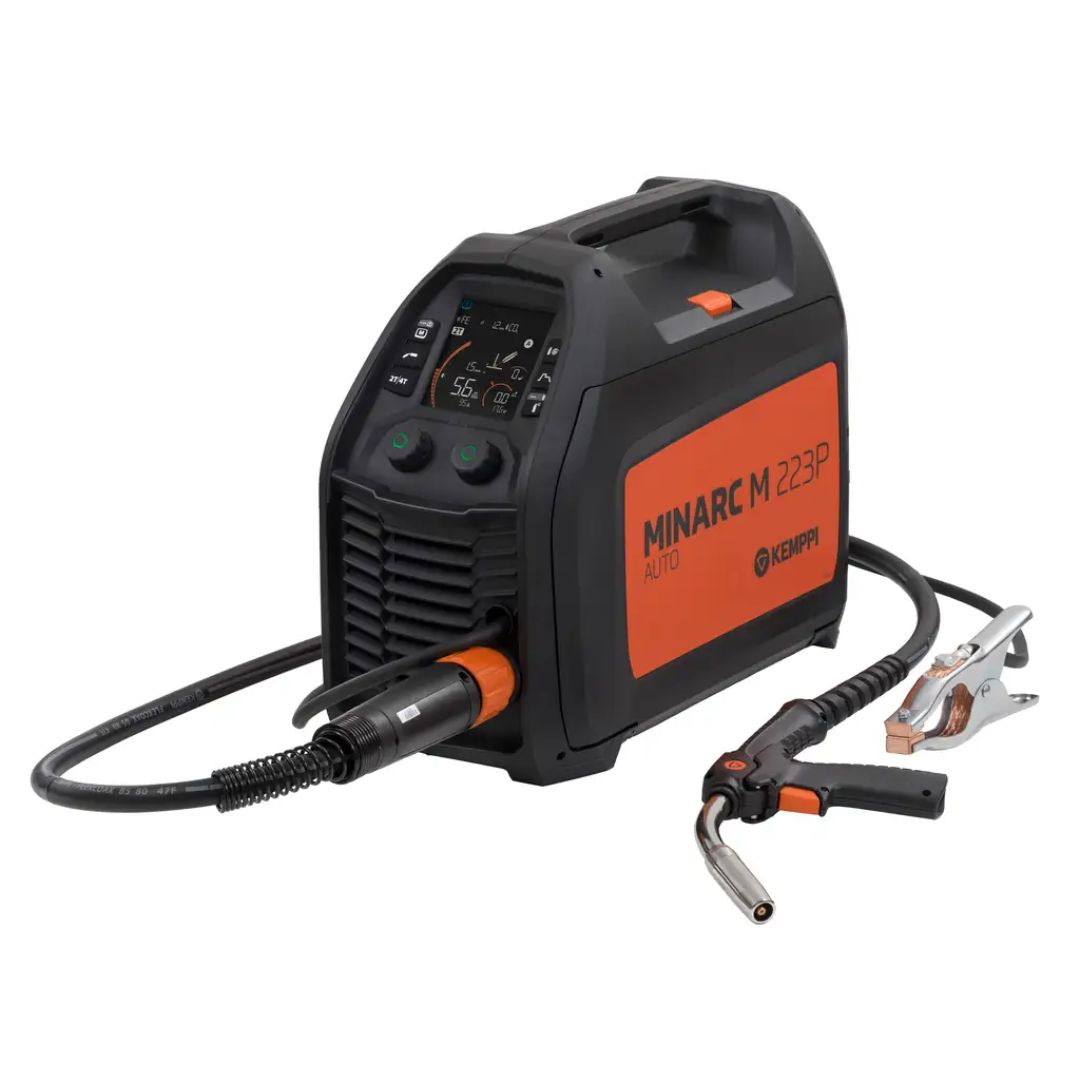

Kemppi  Minarc M 223P | Pulsed multi-process MIG-MAG Welder

Premium portable MIG/MAG welder with a single-phase 110/240V power supply, delivering 220 A at a 20% duty cycle and weighing 11 kg. Manual, synergic and pulsed welding modes are available. The power source can be used with a generator, includes five memory channels and features a Euro connector for the torch. Compatible with a wide range of materials, including steel (Fe), stainless steel (Stainless), aluminium (Al) and CuSi filler wires, Flux-cored and Gasless wires.

The welder is supplied complete with:

• gas hose
• shoulder strap
• earthing cable
• connector
• power cable
• welding torch.

Precise digital wire feed control and a wide range of materials and fill patterns allow for an extremely wide variety of welding applications, ensuring high-quality results.

Built for on-site use, the Minarc M features a robust chassis and a high-strength metal wire feed mechanism. Designed to let you weld quickly; thanks to a high-visibility display and intuitive controls that keep configuration simple, reducing downtime to a minimum.

Minarc M 223P with pulsed wire welding function, Euro torch connection and an optional cooling unit, ideal for manufacturing environments where consistency and finish quality are non-negotiable.

KEY FEATURES

• Powerful 220-amp PFC MIG/MAG welder, single-phase, 110 V/120 V and 220 V/240 V
• Professional welding quality – Digital arc control
• Extensive menu of welding programmes for Fe, Ss, Al, CuSi, Flux and gasless wires 0.6/0.8/0.9/1.0/1.2
• Euro connector and PULSED MIG-MAG
• Water-cooling option with Minarc Cooler 05 unit
• 5 memory channels
• LCD display with colour guide
• Functions for wire loading, gas test, ramp-up, ramp-down and end-wire burn-off
• Robust, all-metal wire feeder frame and double-grooved drive roller
• Compatible with power cables up to 100 m long
• Robust, sturdy and lightweight
• Reliable Finnish quality
