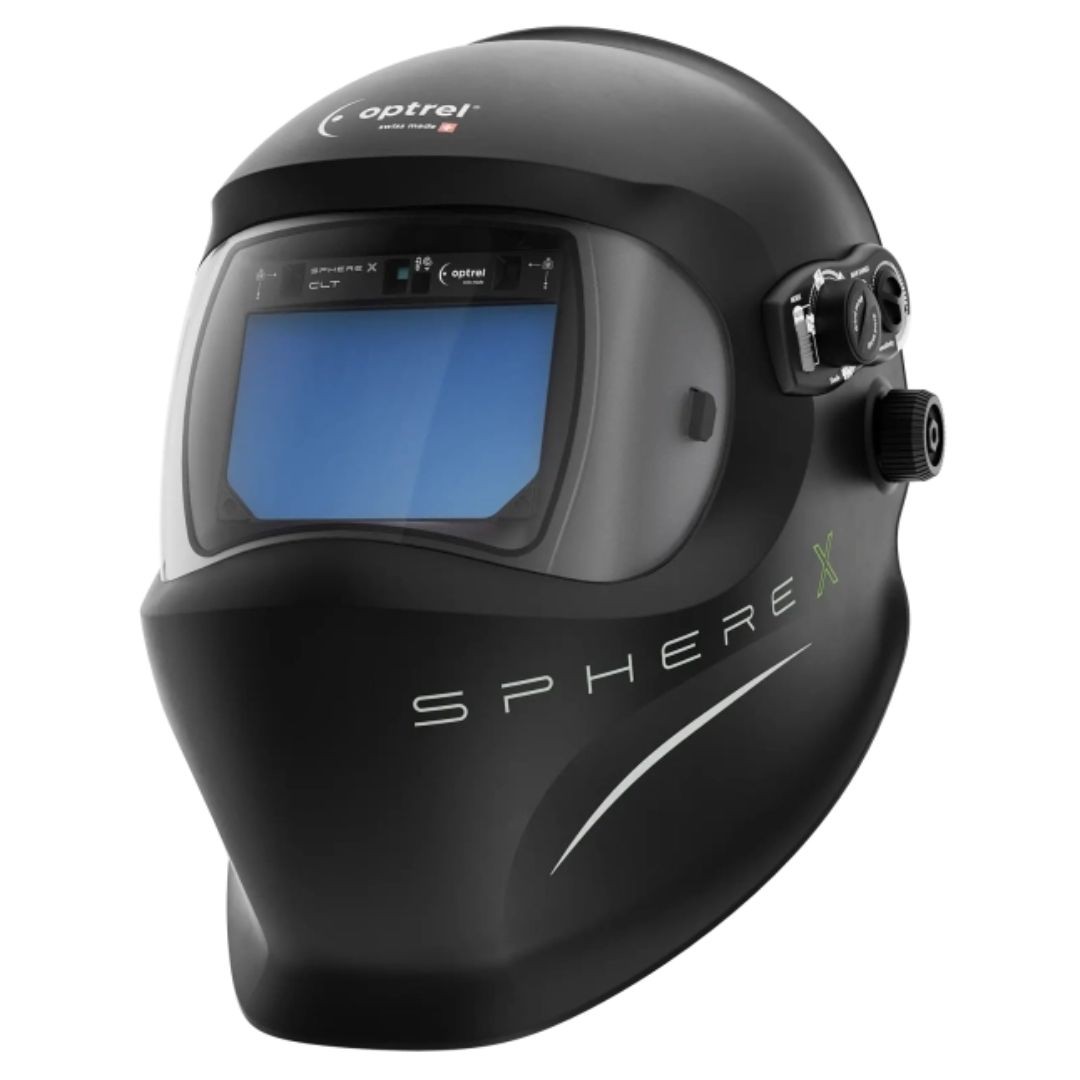

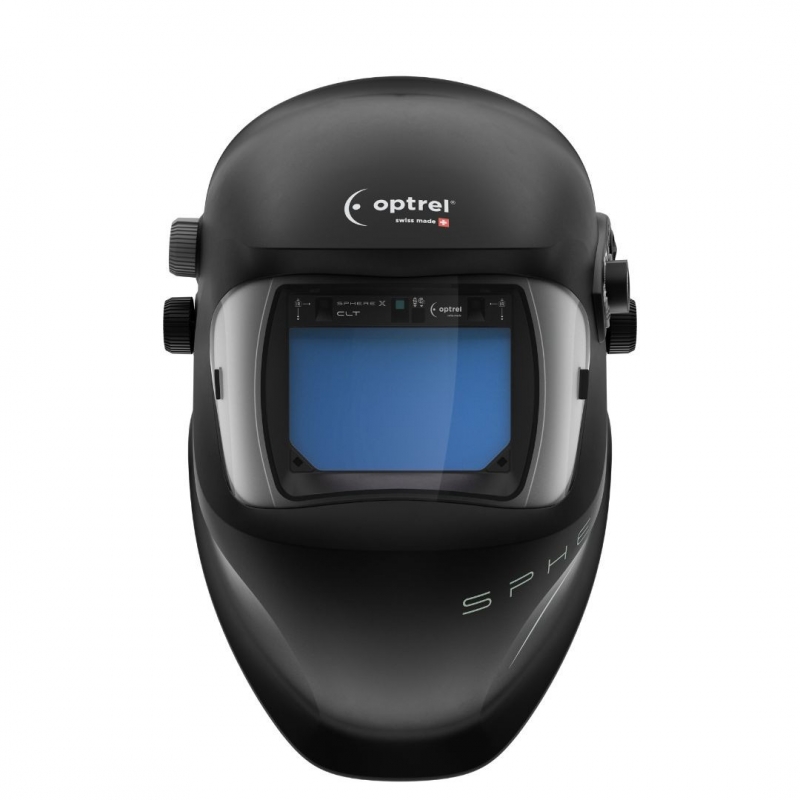

Optrel SPHERE-X 2.5 automatic welding helmet

Description

• Automatic welding helmet with over 30% larger field of view and realistic colour vision for greater efficiency, comfort and safety at work.
• Optionally available with Crystal Lens Technology (variant clt 1006.980) for outstanding optical clarity with brightness level 2.0.
• ShadeTronic® for uninterrupted work with any welding light intensity.
• Multi-sensory detection for maximum safety even in the most difficult lighting conditions.
• Fadetronic for gradual opening of the anti-glare protection after welding, for fatigue-free working.
• Two-position lock function (Position Locker) for a securely open or closed helmet.
• IsoFit® X Headgear with numerous adjustment functions for maximum personal comfort.
• Suitable for grinding work.
• Can be combined with respiratory protection (see ready-to-weld package: welding helmet with Swiss Air).

Fields of application

All electric welding processes:

Electrode welding (Stick Welding, SMAW) / MIG/MAG (gas metal arc welding, GMAW) / High-power GMAW welding / Flux-cored welding / TIG welding (TIG, GTAW) / Plasma welding / Microplasma welding / Plasma cutting

Grinding work in grinding mode

Not suitable for laser welding!

Package contents

• Welding helmet
• Instructions for use
• Carrying case
• Warranty card

Technical data

• Colour of handles: black
• Colour of welding helmet: black
• Power supply: solar cells, 2 replaceable 3 V button batteries (CR2032)
• Product group: automatic welding helmet
• Product series: sphereX
• Product type: welding series
• Protection level (not activated): 2.5
• Protection levels (automatic): 5 – 12
• Protection levels (manual): 8 – 12, 4 – 8
• Sensitivity adjustment: continuous, with ‘Super High’ sensitivity range
• Sensors: 5 sensors
• Helmet version: 2.5
• Weight: 640 g / 22 57 oz
• test5: No
• Viewing angle dependency: V2

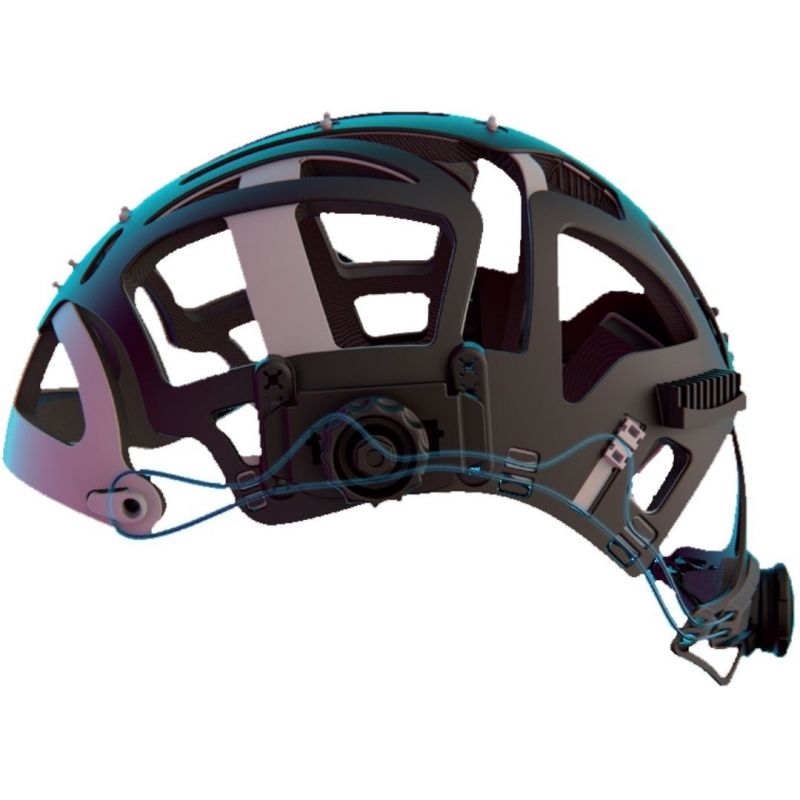

IsoFit Optrel shell

The Sphere-x 2.5 welding helmet comes standard with the IsoFit shell. This is the only product in the world that can be adjusted to any head shape in width, length and height, so that the helmet really fits ‘like a glove’.

This allows the front stabiliser, height adjustment and neck stabiliser to be individually adjusted.

The spacious and comfortable inner padding is pleasant to wear even during long welding sessions. Its mesh structure provides 100% more support surface for perfect weight distribution.
