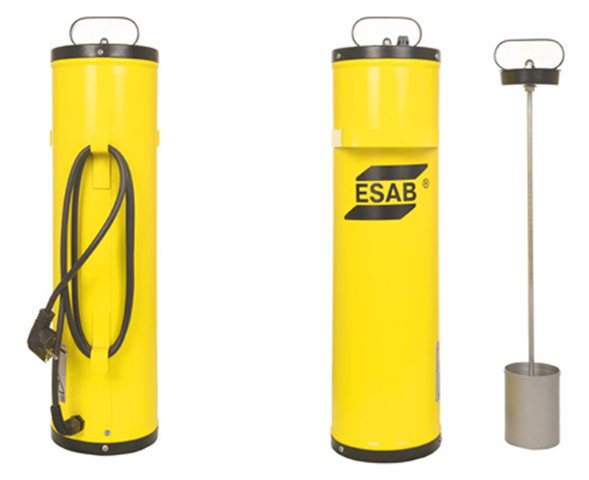

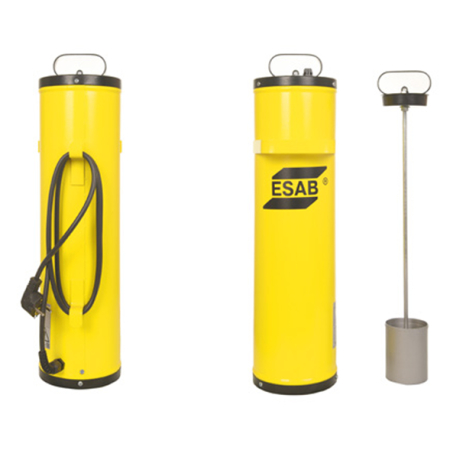

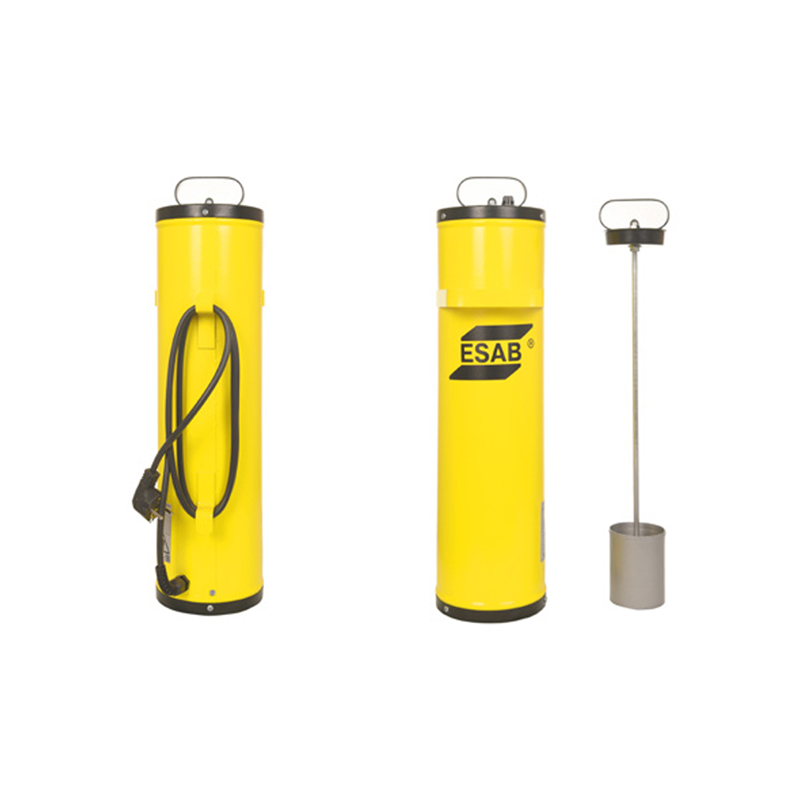

Esab PSE-5 electrode warmer
Capacity for drying and storing electrodes weighing up to 5 kg, with a maximum length of 450 mm.
Convenient preset temperature of 130 °C with an automatic switch-on cycle and uniform temperature distribution inside the dryer.
The steel construction with 32 mm glass wool insulation and an electrostatic powder-coated exterior ensures high strength and a long service life.
Excellent thermal insulation (from -50 to +250 °C). Convenient and quick-release chamber for removing electrodes.
The 200 W power rating allows an empty drying chamber to heat up to the setpoint in just 15 minutes
Excellent insulation and efficient operation ensure that the electrodes remain free of moisture, guaranteeing excellent weld quality without cracks or porosity.
Height 500 mm
Weight 5 kg Diameter 140 mm
Power supply: 1-phase 230 V AC 50/60 Hz
